EC-801 Series

1 / 1

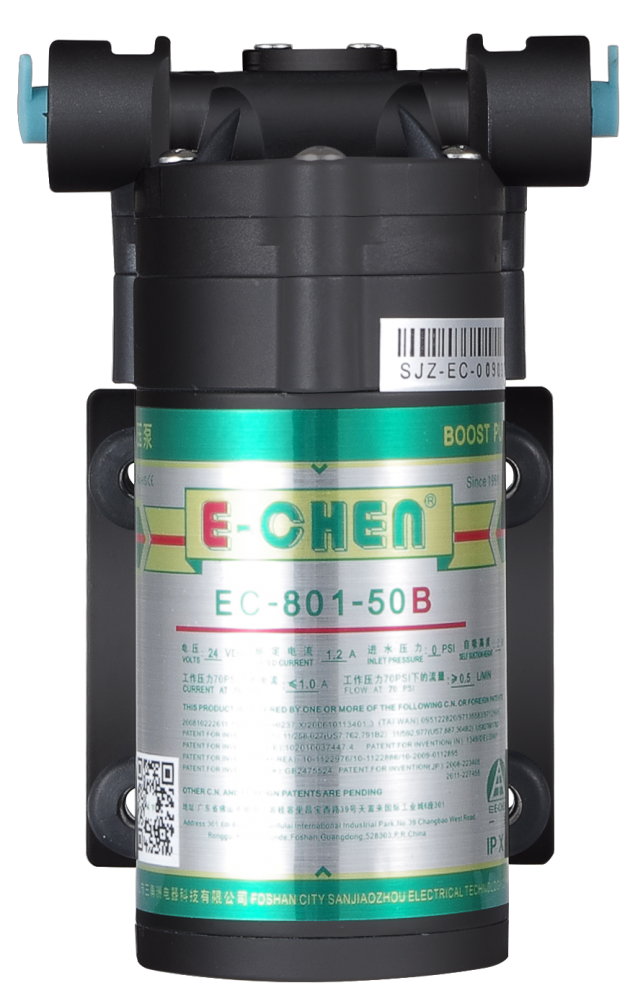

EC-801 Series

Small Size, Self-Priming Booster Pump

Product brief：

Available for 50GPD and 75GPD

Specifications
- Voltage：24VDC
- Port：⌀6.35mm
- Inlet Pressure：0 psi
- Working Pressure：70 psi
- Flow at Working Pressure：≧ 0.45 LPM
- Current at Working Pressure： ≦ 1.0 A
- Max Current：≦ 1.2 A
- Max Pressure：110±10psi
- Weight：0.76kg
- Dimensions：137x107x69mm
Performance Curve Chart
Specifications
- Voltage：24VDC
- Port：⌀6.35mm
- Inlet Pressure：0 psi
- Working Pressure：70 psi
- Flow at Working Pressure：≧ 0.6 LPM
- Current at Working Pressure： ≦ 1.2 A
- Max Current：≦ 1.5 A
- Max Pressure：110±10psi
- Weight：0.76kg
- Dimensions：137x107x69mm
Performance Curve Chart

EC-801-50B
Specifications
- Voltage：24VDC
- Port：⌀6.35mm
- Inlet Pressure：0 psi
- Working Pressure：70 psi
- Flow at Working Pressure：≧ 0.45 LPM
- Current at Working Pressure： ≦ 1.0 A
- Max Current：≦ 1.2 A
- Max Pressure：110±10psi
- Weight：0.76kg
- Dimensions：137x107x69mm

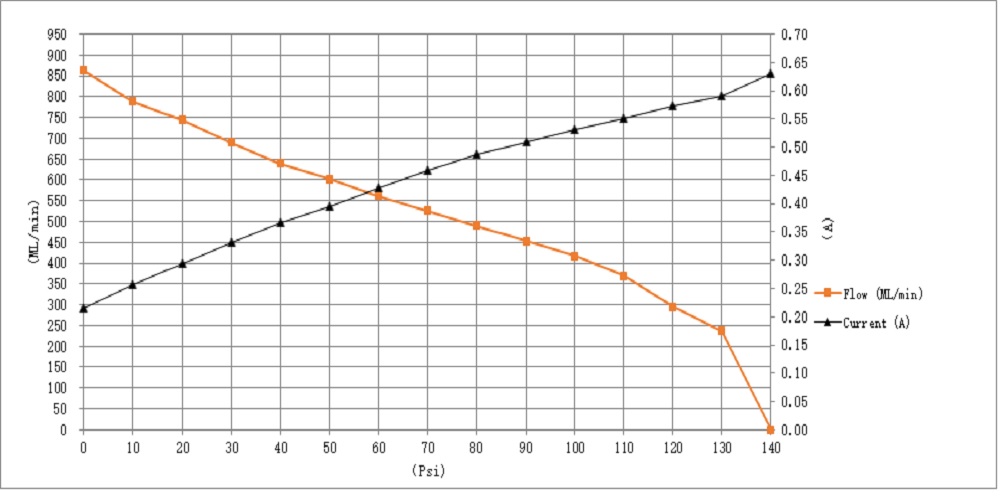

Performance Curve Chart
EC-801-75B
Specifications
- Voltage：24VDC
- Port：⌀6.35mm
- Inlet Pressure：0 psi
- Working Pressure：70 psi
- Flow at Working Pressure：≧ 0.6 LPM
- Current at Working Pressure： ≦ 1.2 A
- Max Current：≦ 1.5 A
- Max Pressure：110±10psi
- Weight：0.76kg
- Dimensions：137x107x69mm

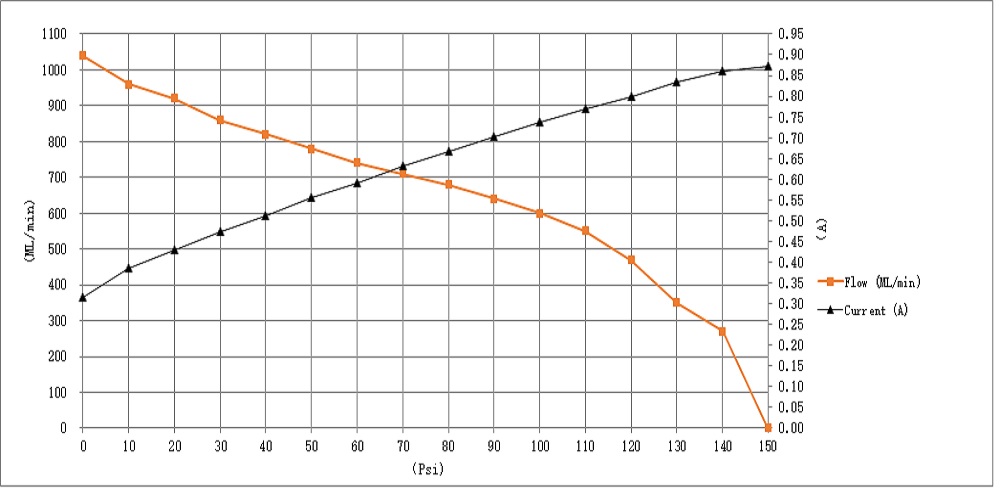

Performance Curve Chart

Features

3 Chambers Diaphragm Pump
Small size Diaphragm Pump
Self-Priming
Patented Core Technology
Low Noise
No Decompression
No Water Leakage
High efficiency

Materials

Nylon Housing
EPDM Valves
Santoprene Diaphragm
304 Stainless Steel Fasteners

Applications

Pre-Filter Water Treatment
Reverse Osmosis
Medical Labwater
Misting Systems
Carbonation Systems
Alternative Energy/Solar
