EC-800 Series

1 / 1

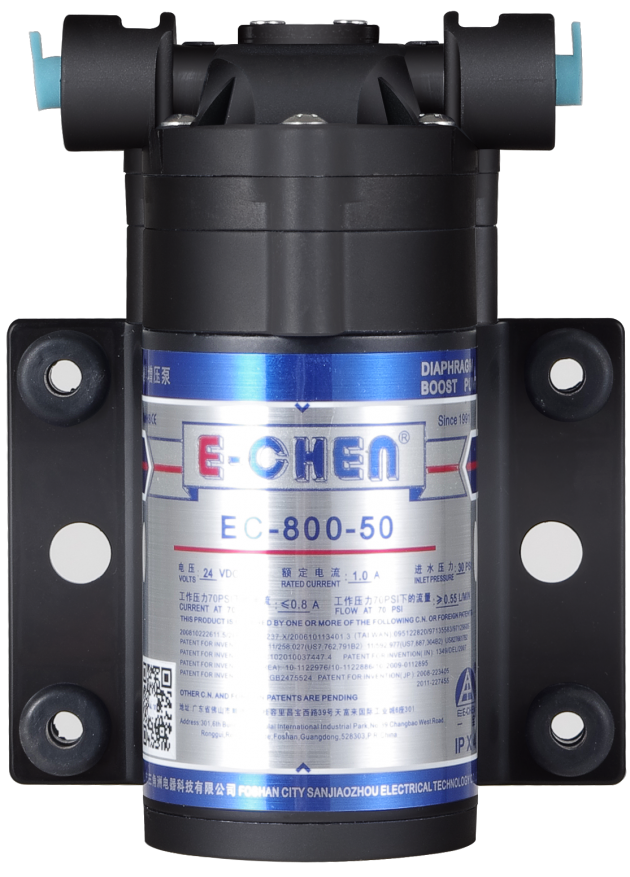

EC-800 Series

Small Size Booster Pump!

Product brief：

Small size booster pump for your desktop RO system. Available for 50GPD and 75GPD.

Specifications
- Voltage：24VDC
- Port：⌀6.35mm
- Inlet Pressure：30 psi
- Working Pressure：70 psi
- Flow at Working Pressure：≧ 0.45 LPM
- Current at Working Pressure： ≦ 0.8 A
- Max Current：≦ 1.0 A
- Max Pressure：110±10psi
- Weight：0.76kg
- Dimensions：137x100x69mm
Performance Curve Chart
Specifications
- Voltage：24VDC
- Port：⌀6.35mm
- Inlet Pressure：30 psi
- Working Pressure：70 psi
- Flow at Working Pressure：≧ 0.65 LPM
- Current at Working Pressure： ≦ 1.0 A
- Max Current：≦ 1.4 A
- Max Pressure：110±10psi
- Weight：0.76kg
- Dimensions：137x100x69mm
Performance Curve Chart

EC-800-50
Specifications
- Voltage：24VDC
- Port：⌀6.35mm
- Inlet Pressure：30 psi
- Working Pressure：70 psi
- Flow at Working Pressure：≧ 0.45 LPM
- Current at Working Pressure： ≦ 0.8 A
- Max Current：≦ 1.0 A
- Max Pressure：110±10psi
- Weight：0.76kg
- Dimensions：137x100x69mm

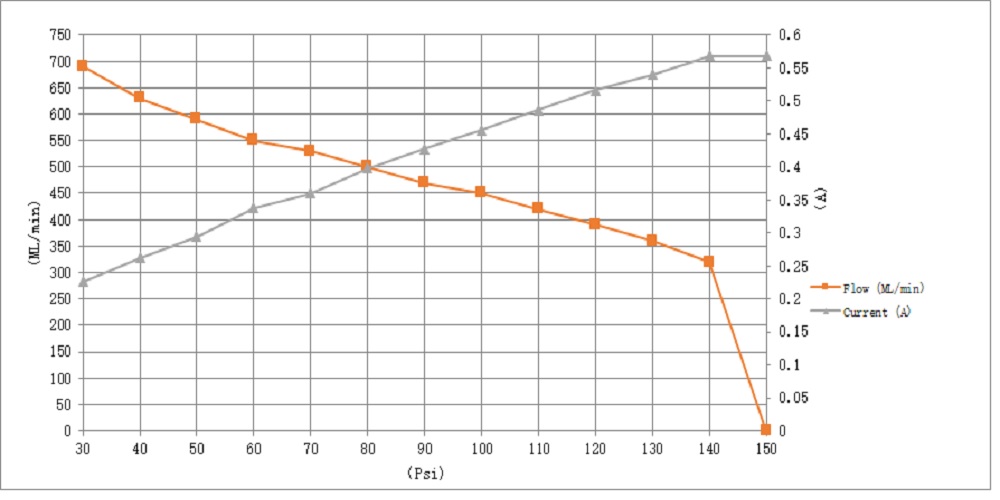

Performance Curve Chart
EC-800-75
Specifications
- Voltage：24VDC
- Port：⌀6.35mm
- Inlet Pressure：30 psi
- Working Pressure：70 psi
- Flow at Working Pressure：≧ 0.65 LPM
- Current at Working Pressure： ≦ 1.0 A
- Max Current：≦ 1.4 A
- Max Pressure：110±10psi
- Weight：0.76kg
- Dimensions：137x100x69mm

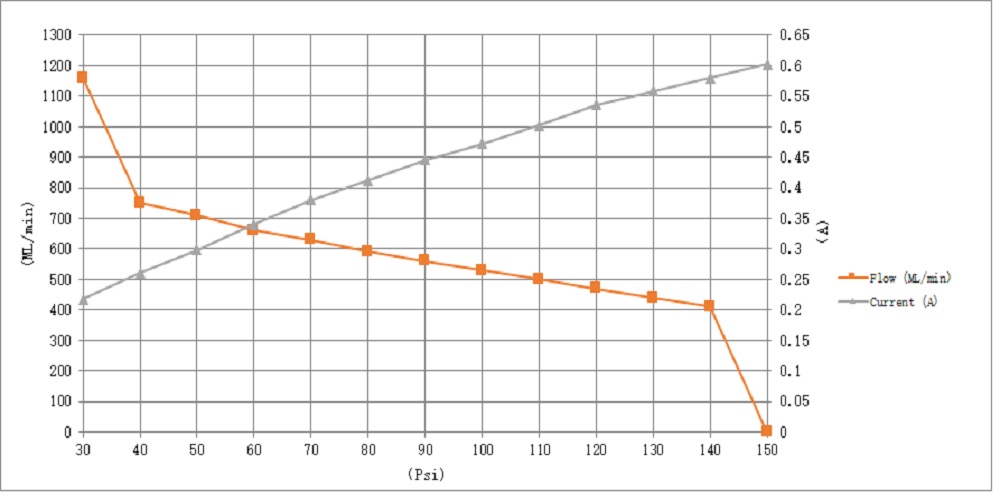

Performance Curve Chart

Features

3 Chambers Diaphragm Pump
Small size Diaphragm Pump
Patented Core Technology
Low Noise
No Decompression
No Water Leakage
High efficiency

Materials

Nylon Housing
EPDM Valves
Santoprene Diaphragm
304 Stainless Steel Fasteners

Applications

Pre-Filter Water Treatment
Reverse Osmosis
Medical Labwater
Misting Systems
Carbonation Systems
Alternative Energy/Solar
