Name: EC-636 Series
Brand: WaterPAL International Co., Ltd
SKU: NO79

1 / 1

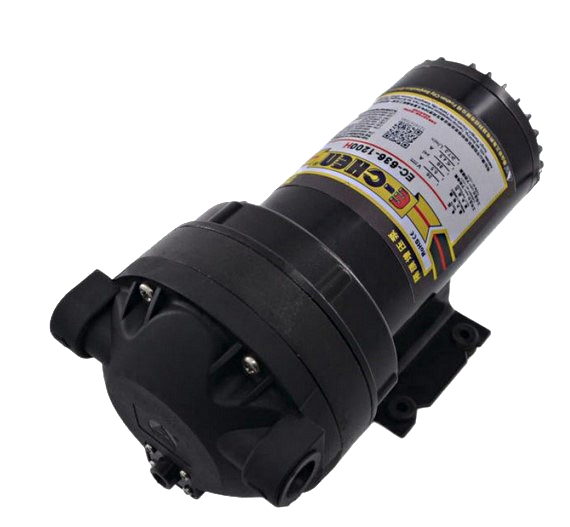

EC-636 Series

Commercial Booster Pump!

Product brief：

Designed for commercial Reverse Osmosis system. It features 6 chambers of pump head and the biggest flow of diaphragm pump in RO water purification field. Available for 800, 1000 and 1200 GPD RO system.

Specifications
- Voltage：24VDC
- Port：3/8" NPT
- Inlet Pressure：30 psi
- Working Pressure：100 psi
- Flow at Working Pressure：≧ 4.8 LPM
- Current at Working Pressure： ≦ 4.0 A
- Max Current：≦ 5.5 A
- Max Pressure：160±15psi
- Weight：4.62kg

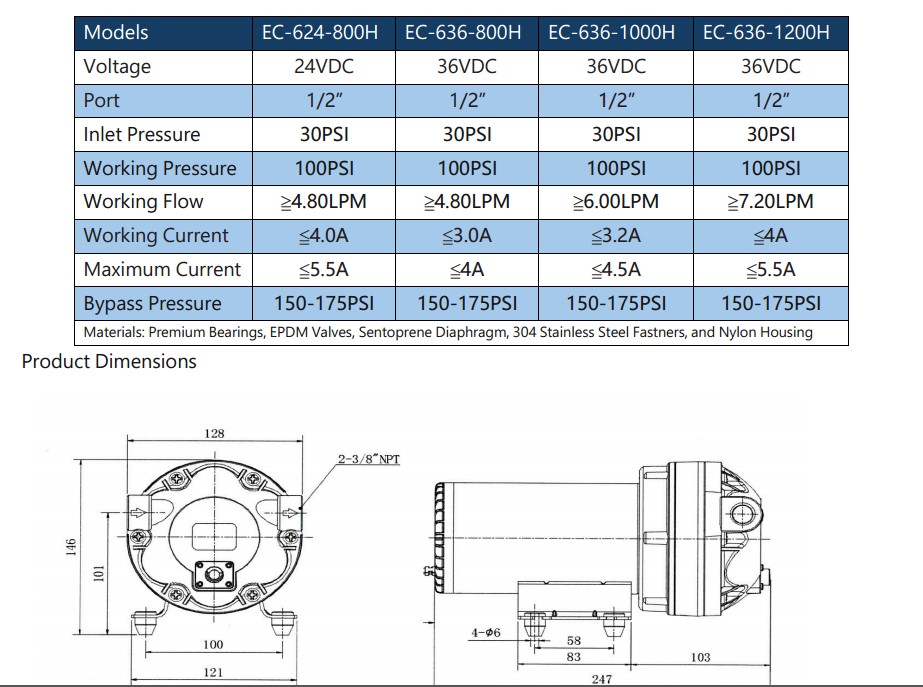

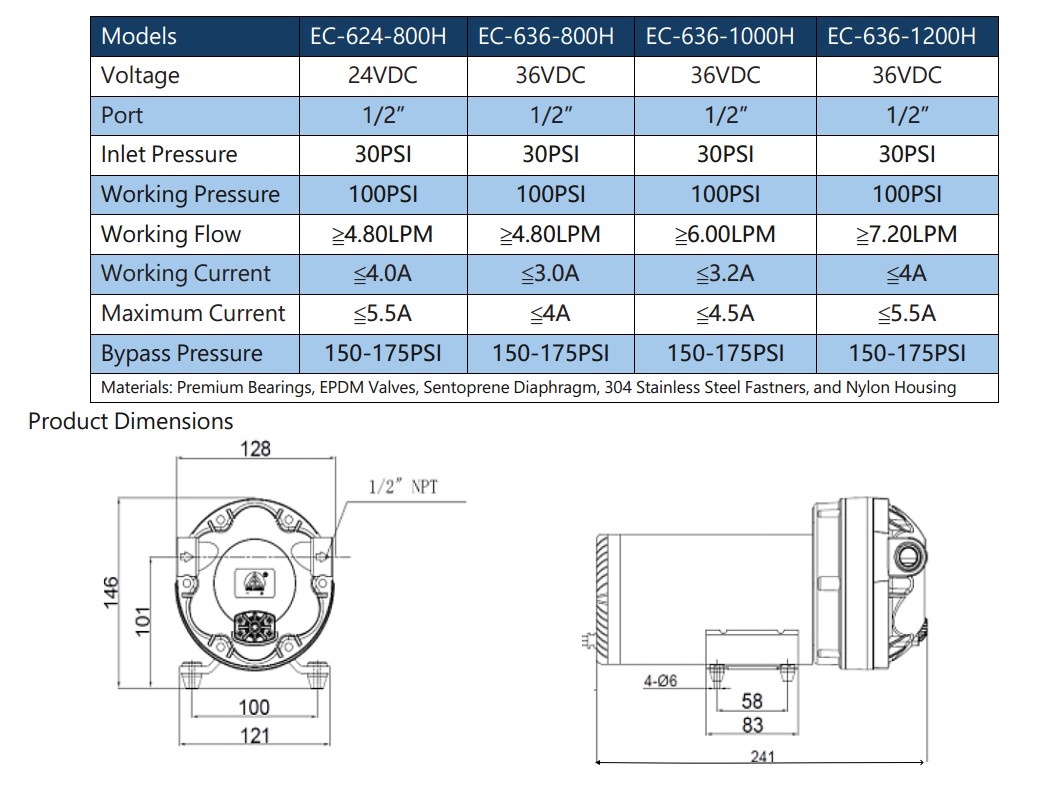

- Dimensions：247x121x146mm
Performance Curve Chart
Specifications
- Voltage：36VDC
- Port：3/8" NPT
- Inlet Pressure：30 psi
- Working Pressure：100 psi
- Flow at Working Pressure：≧ 4.8 LPM
- Current at Working Pressure： ≦ 3.0 A
- Max Current：≦ 4 A
- Max Pressure：160±15psi
- Weight：4.62kg
- Dimensions：247x121x146mm
Performance Curve Chart
Specifications
- Voltage：36VDC
- Port：3/8" NPT
- Inlet Pressure：30 psi
- Working Pressure：100 psi
- Flow at Working Pressure：≧ 6.0 LPM
- Current at Working Pressure： ≦ 3.2 A
- Max Current：≦ 4.5 A
- Max Pressure：160±15psi
- Weight：4.62kg
- Dimensions：247x121x146mm
Performance Curve Chart
Specifications
- Voltage：36VDC
- Port：3/8" NPT
- Inlet Pressure：30 psi
- Working Pressure：100 psi
- Flow at Working Pressure：≧ 7.2 LPM
- Current at Working Pressure： ≦ 4 A
- Max Current：≦ 5.5 A
- Max Pressure：160±15psi
- Weight：4.62kg
- Dimensions：247x121x146mm
Performance Curve Chart

EC-624-800H
Specifications
- Voltage：24VDC
- Port：3/8" NPT
- Inlet Pressure：30 psi
- Working Pressure：100 psi
- Flow at Working Pressure：≧ 4.8 LPM
- Current at Working Pressure： ≦ 4.0 A
- Max Current：≦ 5.5 A
- Max Pressure：160±15psi
- Weight：4.62kg
- Dimensions：247x121x146mm
Performance Curve Chart

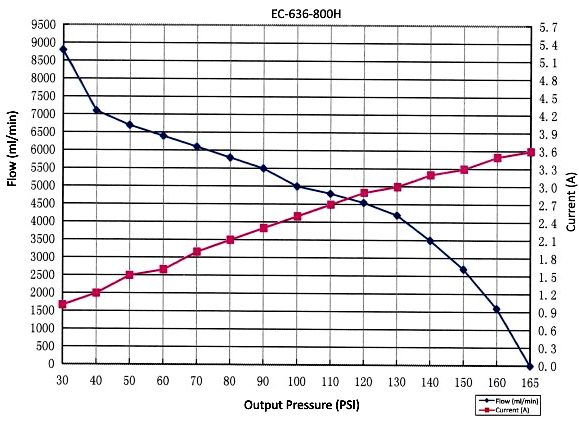

EC-636-800H
Specifications
- Voltage：36VDC
- Port：3/8" NPT
- Inlet Pressure：30 psi
- Working Pressure：100 psi
- Flow at Working Pressure：≧ 4.8 LPM
- Current at Working Pressure： ≦ 3.0 A
- Max Current：≦ 4 A
- Max Pressure：160±15psi
- Weight：4.62kg
- Dimensions：247x121x146mm
Performance Curve Chart

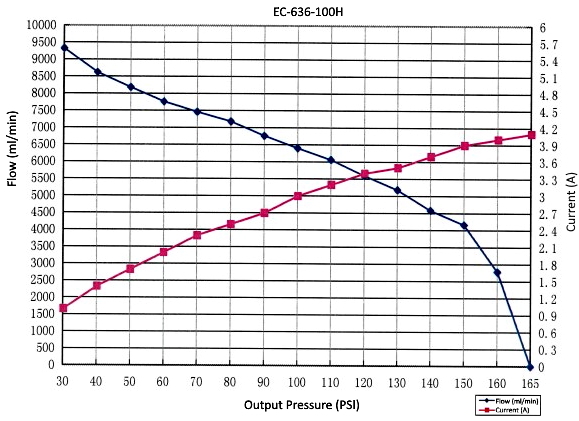

EC-636-1000H
Specifications
- Voltage：36VDC
- Port：3/8" NPT
- Inlet Pressure：30 psi
- Working Pressure：100 psi
- Flow at Working Pressure：≧ 6.0 LPM
- Current at Working Pressure： ≦ 3.2 A
- Max Current：≦ 4.5 A
- Max Pressure：160±15psi
- Weight：4.62kg
- Dimensions：247x121x146mm
Performance Curve Chart

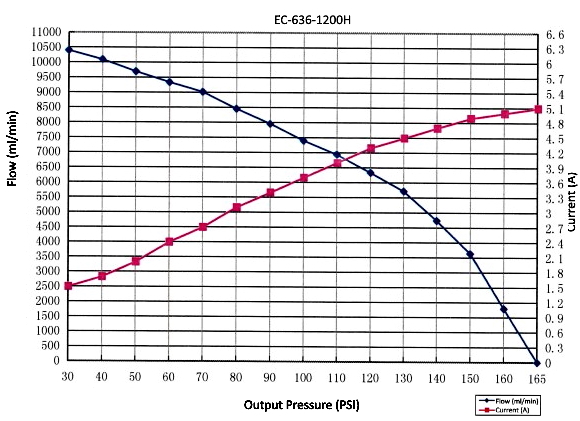

EC-636-1200H
Specifications
- Voltage：36VDC
- Port：3/8" NPT
- Inlet Pressure：30 psi
- Working Pressure：100 psi
- Flow at Working Pressure：≧ 7.2 LPM
- Current at Working Pressure： ≦ 4 A
- Max Current：≦ 5.5 A
- Max Pressure：160±15psi
- Weight：4.62kg
- Dimensions：247x121x146mm
Performance Curve Chart
