EC-802 400-800Series

1 / 5

EC-802 400-800Series

Compact Size Booster Pump!

Product brief：

Available for 400GPD ,500GPD ,600GPD and 800GPD.

Specifications
- Voltage：24VDC
- Port：3/8" NPT
- Inlet Pressure：30 psi
- Working Pressure：80 psi
- Flow at Working Pressure：≧ 2.50 LPM
- Current at Working Pressure： ≦ 2.2 A
- Max Current：≦ 3.0 A
- Max Pressure：130±15psi
- Weight：2.08kg
- Dimensions：207x102x88mm
Performance Curve Chart
Specifications
- Voltage：24VDC
- Port：3/8" NPT
- Inlet Pressure：30 psi
- Working Pressure：80 psi
- Flow at Working Pressure：≧ 3.0 LPM
- Current at Working Pressure： ≦ 2.5 A
- Max Current：≦ 3.5 A
- Max Pressure：140±15psi
- Weight：2.11kg
- Dimensions：207x102x86mm
Performance Curve Chart
Specifications
- Voltage：24VDC
- Port：3/8" NPT
- Inlet Pressure：30 psi
- Working Pressure：80 psi
- Flow at Working Pressure：≧ 3.5 LPM
- Current at Working Pressure： ≦ 3.0 A
- Max Current：≦ 4.2 A
- Max Pressure：140±15psi
- Weight：2.14kg
- Dimensions：207x102x86mm
Performance Curve Chart
Specifications
- Voltage：24VDC
- Port：3/8" NPT
- Inlet Pressure：30 psi
- Working Pressure：100 psi
- Flow at Working Pressure：≧ 3.7 LPM
- Current at Working Pressure： ≦ 3.5 A
- Max Current：≦ 4.5 A
- Max Pressure：140±15psi
- Weight：2.31kg
- Dimensions：207x88x88mm
Performance Curve Chart
Specifications

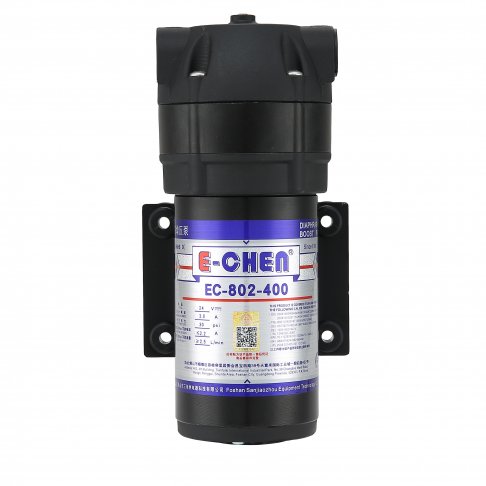

EC-802-400
Specifications
- Voltage：24VDC
- Port：3/8" NPT
- Inlet Pressure：30 psi
- Working Pressure：80 psi
- Flow at Working Pressure：≧ 2.50 LPM
- Current at Working Pressure： ≦ 2.2 A
- Max Current：≦ 3.0 A
- Max Pressure：130±15psi
- Weight：2.08kg
- Dimensions：207x102x88mm
Performance Curve Chart

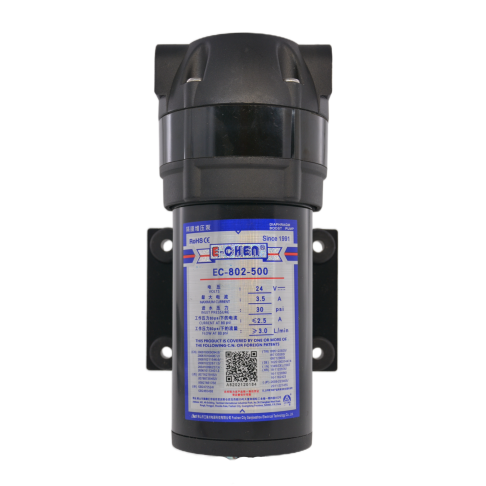

EC-802-500
Specifications
- Voltage：24VDC
- Port：3/8" NPT
- Inlet Pressure：30 psi
- Working Pressure：80 psi
- Flow at Working Pressure：≧ 3.0 LPM
- Current at Working Pressure： ≦ 2.5 A
- Max Current：≦ 3.5 A
- Max Pressure：140±15psi
- Weight：2.11kg
- Dimensions：207x102x86mm
Performance Curve Chart

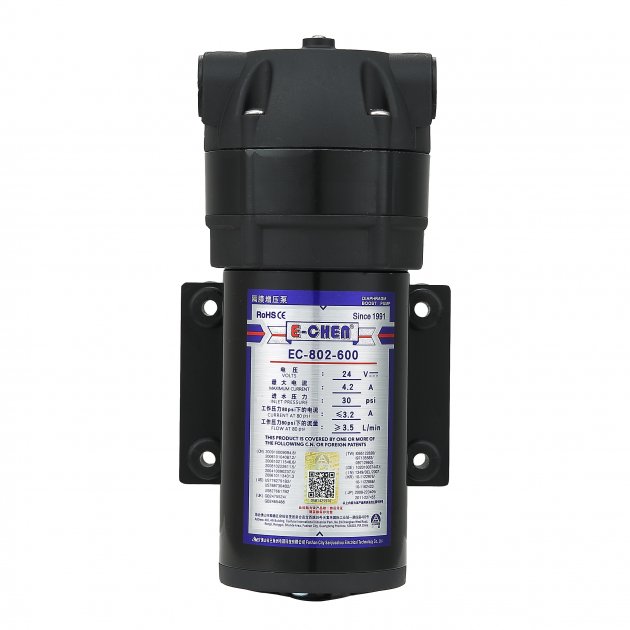

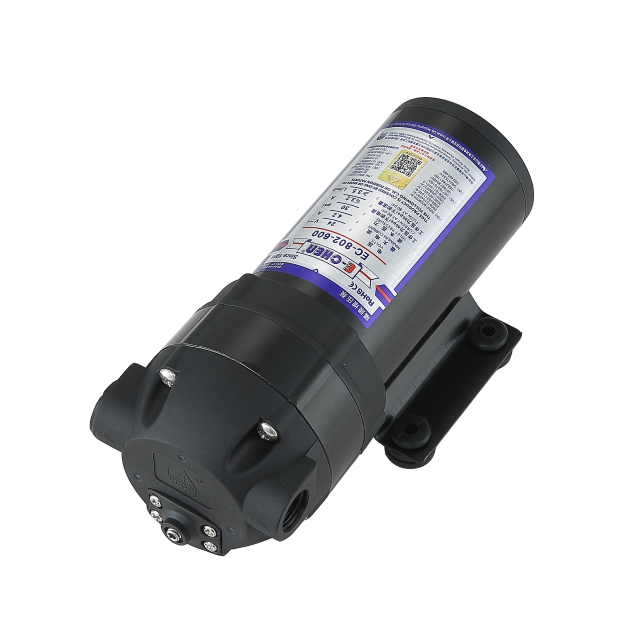

EC-802-600
Specifications
- Voltage：24VDC
- Port：3/8" NPT
- Inlet Pressure：30 psi
- Working Pressure：80 psi
- Flow at Working Pressure：≧ 3.5 LPM
- Current at Working Pressure： ≦ 3.0 A
- Max Current：≦ 4.2 A
- Max Pressure：140±15psi
- Weight：2.14kg
- Dimensions：207x102x86mm
Performance Curve Chart
EC-802-800
Specifications
- Voltage：24VDC
- Port：3/8" NPT
- Inlet Pressure：30 psi
- Working Pressure：100 psi
- Flow at Working Pressure：≧ 3.7 LPM
- Current at Working Pressure： ≦ 3.5 A
- Max Current：≦ 4.5 A
- Max Pressure：140±15psi
- Weight：2.31kg
- Dimensions：207x88x88mm
Performance Curve Chart
EC-802-Specifications

Specifications

Features

3 Chambers Diaphragm Pump
Compact size Diaphragm Pump
Patented Core Technology
Low Noise
No Decompression
No Water Leakage
High efficiency

Materials

Nylon Housing
EPDM Valves
Santoprene Diaphragm
304 Stainless Steel Fasteners

Applications

Pre-Filter Water Treatment
Reverse Osmosis
Medical Labwater
Misting Systems
Carbonation Systems
Alternative Energy/Solar
