Name: EC-RV-20L
Brand: WaterPAL International Co., Ltd
SKU: NO288

1 / 6

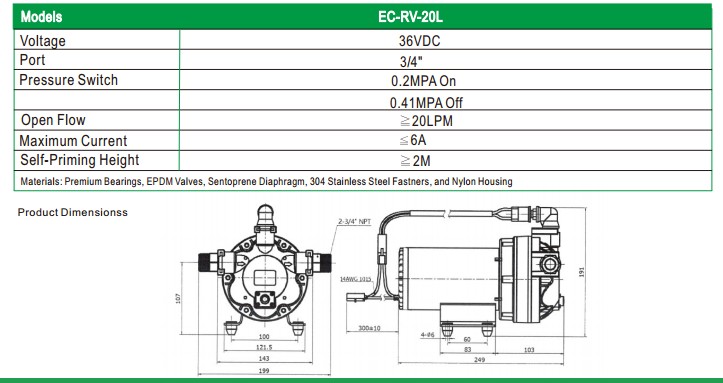

EC-RV-20L

Built-In Pressure Switch

Product brief：

Delivery pump (also known as demand pump, dispensing pump and transfer pump) are designed to increase water pressure, transfer water and can be run continuously for hours at a time. Built-in pressure switch (standard 0.45Mpa off) to shut-off pump when pressure reaches setting. Available for 20 LPM.

Specifications
- Voltage：24VDC (110VAC available)
- Port：1/2" NPT
- Inlet Pressure：0 psi
- Pressure Switch：0.45 Mpa (65 psi) Off (Available for different setting)
- Open Flow： 5.0 LPM
- Max Current：≦ 5.0 A
- Weight：2.90kg
- Dimensions：226x125x120mm
Performance Curve Chart
Specifications
- Voltage：24VDC (110VAC available)
- Port：1/2" NPT
- Inlet Pressure：0 psi
- Pressure Switch：0.45 Mpa (65 psi) Off (Available for different setting)
- Open Flow： 7.0 LPM
- Max Current：≦ 8.0 A
- Weight：2.90kg
- Dimensions：226x125x120mm
Performance Curve Chart
Specifications
- Voltage：24VDC (110VAC available)
- Port：1/2" NPT
- Inlet Pressure：0 psi
- Pressure Switch：0.45 Mpa (65 psi) Off (Available for different setting)
- Open Flow： 10.0 LPM
- Max Current：≦ 10.0 A
- Weight：2.90kg
- Dimensions：226x125x120mm
Performance Curve Chart
Specifications
- Voltage：24VDC (110VAC available)
- Port：1/2" NPT
- Inlet Pressure：0 psi
- Pressure Switch：0.45 Mpa (65 psi) Off (Available for different setting)
- Open Flow： 12.0 LPM
- Max Current：≦ 10.0 A
- Weight：2.90kg
- Dimensions：226x125x120mm
Performance Curve Chart

EC-RV-05LF
Specifications
- Voltage：24VDC (110VAC available)
- Port：1/2" NPT
- Inlet Pressure：0 psi
- Pressure Switch：0.45 Mpa (65 psi) Off (Available for different setting)
- Open Flow： 5.0 LPM
- Max Current：≦ 5.0 A
- Weight：2.90kg
- Dimensions：226x125x120mm
Performance Curve Chart
EC-RV-07LF
Specifications
- Voltage：24VDC (110VAC available)
- Port：1/2" NPT
- Inlet Pressure：0 psi
- Pressure Switch：0.45 Mpa (65 psi) Off (Available for different setting)
- Open Flow： 7.0 LPM
- Max Current：≦ 8.0 A
- Weight：2.90kg
- Dimensions：226x125x120mm
Performance Curve Chart
EC-RV-10LF
Specifications
- Voltage：24VDC (110VAC available)
- Port：1/2" NPT
- Inlet Pressure：0 psi
- Pressure Switch：0.45 Mpa (65 psi) Off (Available for different setting)
- Open Flow： 10.0 LPM
- Max Current：≦ 10.0 A
- Weight：2.90kg
- Dimensions：226x125x120mm
Performance Curve Chart
EC-RV-12LF
Specifications
- Voltage：24VDC (110VAC available)
- Port：1/2" NPT
- Inlet Pressure：0 psi
- Pressure Switch：0.45 Mpa (65 psi) Off (Available for different setting)
- Open Flow： 12.0 LPM
- Max Current：≦ 10.0 A
- Weight：2.90kg
- Dimensions：226x125x120mm
Performance Curve Chart
