Name: EC-AIBLDC-HDC Series
Brand: WaterPAL International Co., Ltd
SKU: NO207

1 / 5

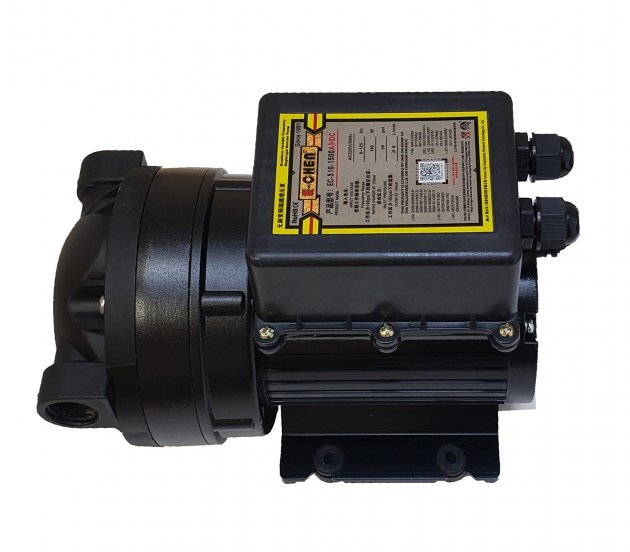

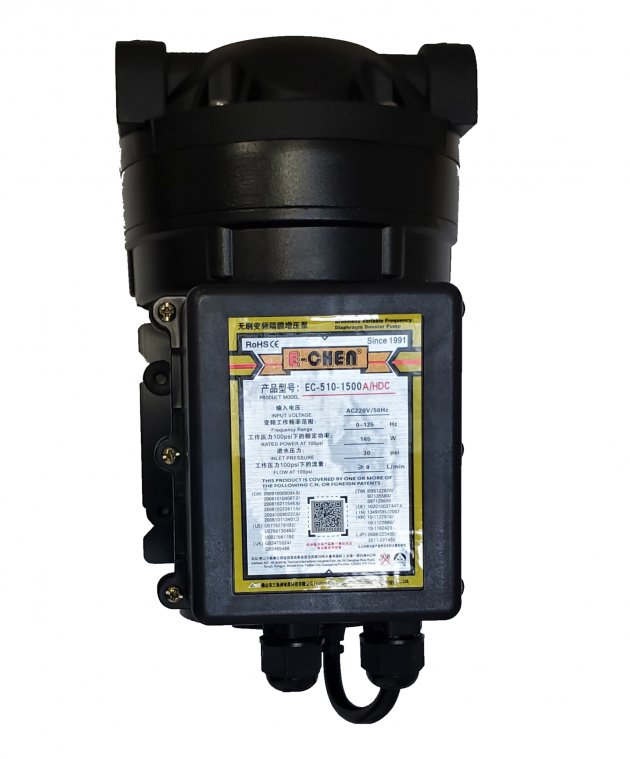

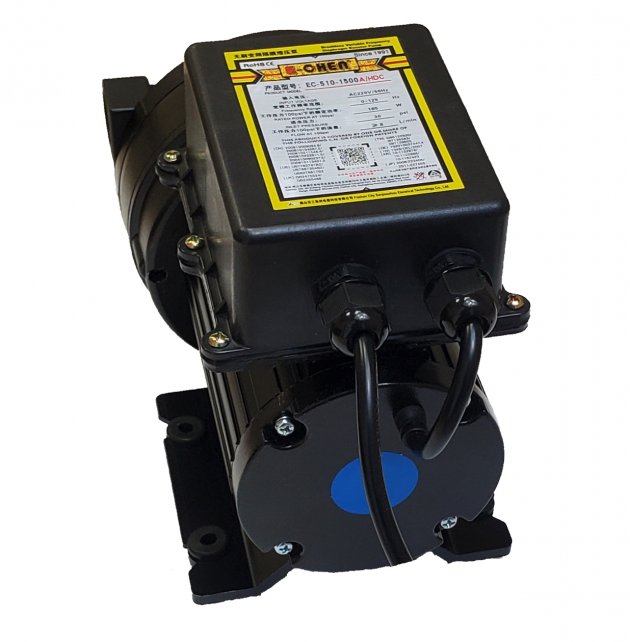

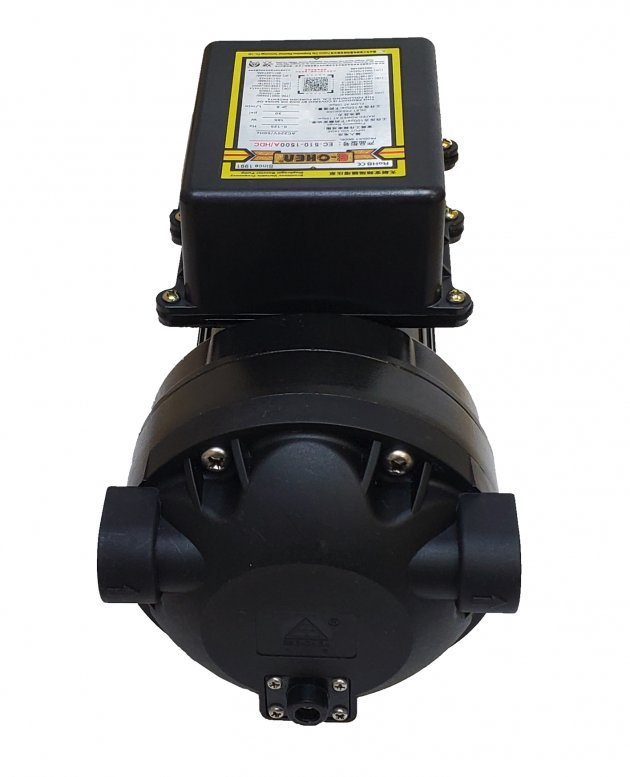

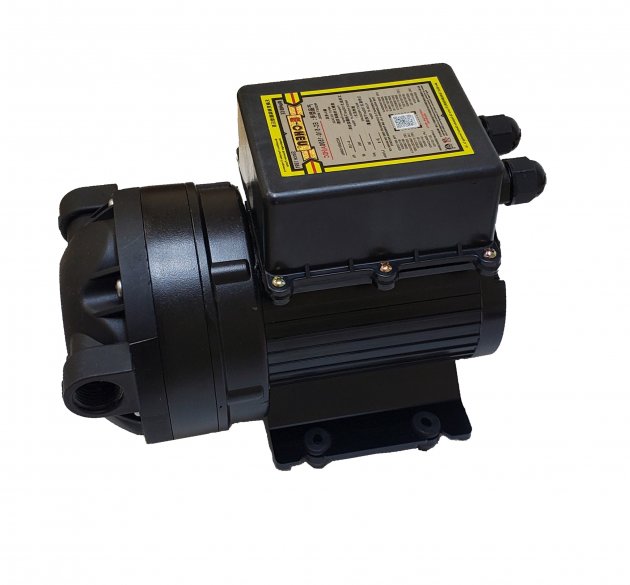

EC-AIBLDC-HDC Series

Product brief：

New BLDC/Brushless RO Booster pump.
No carbon brush-No Sparks.
Long lifetime motor.
Steady RPM.
Self-Protection:Locked rotor protection,Over voltage protection and Over current protection.
Intergrated PCB driver.

Features
- Variable frequency motor
- Steady RPM
- Integrated PCB driver
- Over Voltage Protection
- Over Current Protection
- Locked Rotor Protection
Specifications
- Voltage：220-240VAC
- Port：1/2" NPT
- Inlet Pressure：30 psi
- Working Pressure：100 psi
- Flow at Working Pressure：≧ 8 LPM
- Current at Working Pressure： ≦ 1.2 A
- Max Current：≦ 1.5 A
- Max Pressure：160±15psi
- Weight：1.95kg
- Dimensions：225x128x173mm
Performance Curve Chart

EC-AIBLDC-1500A/HDC
Features
- Variable frequency motor
- Steady RPM
- Integrated PCB driver
- Over Voltage Protection
- Over Current Protection
- Locked Rotor Protection
Specifications
- Voltage：220-240VAC
- Port：1/2" NPT
- Inlet Pressure：30 psi
- Working Pressure：100 psi
- Flow at Working Pressure：≧ 8 LPM
- Current at Working Pressure： ≦ 1.2 A
- Max Current：≦ 1.5 A
- Max Pressure：160±15psi
- Weight：1.95kg
- Dimensions：225x128x173mm
Performance Curve Chart
