Name: EC-AIBLDC-A Series
Brand: WaterPAL International Co., Ltd
SKU: NO201

1 / 5

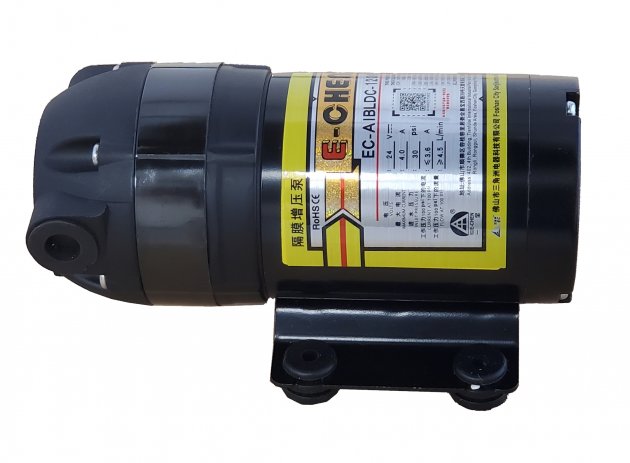

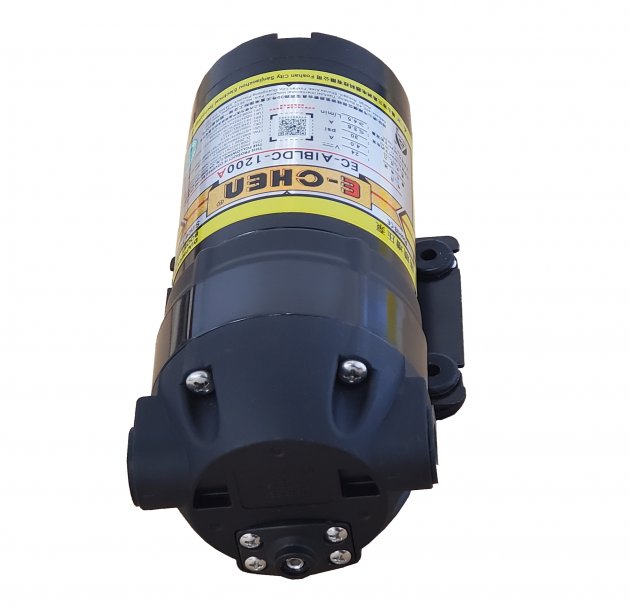

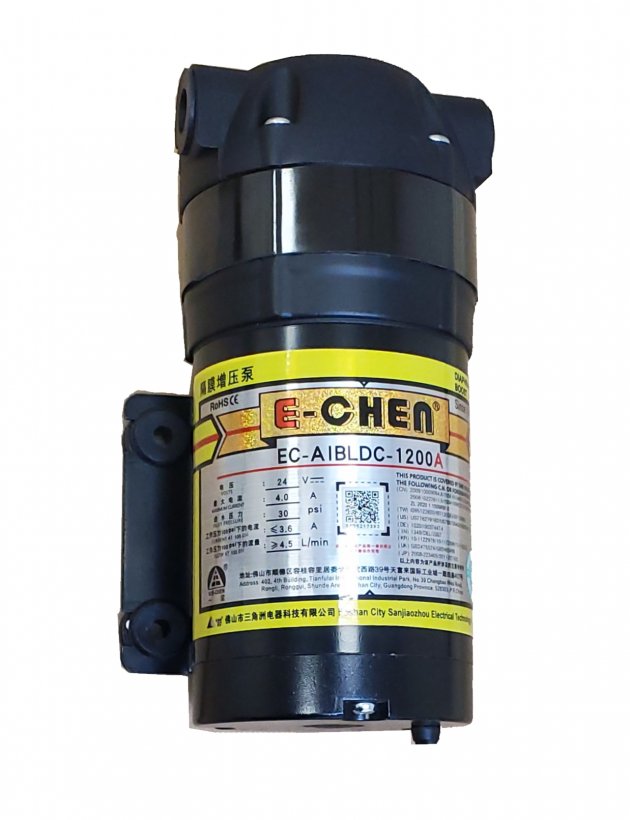

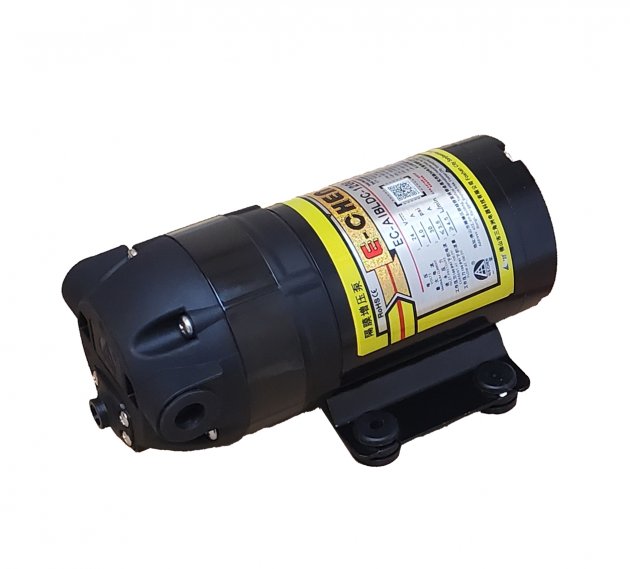

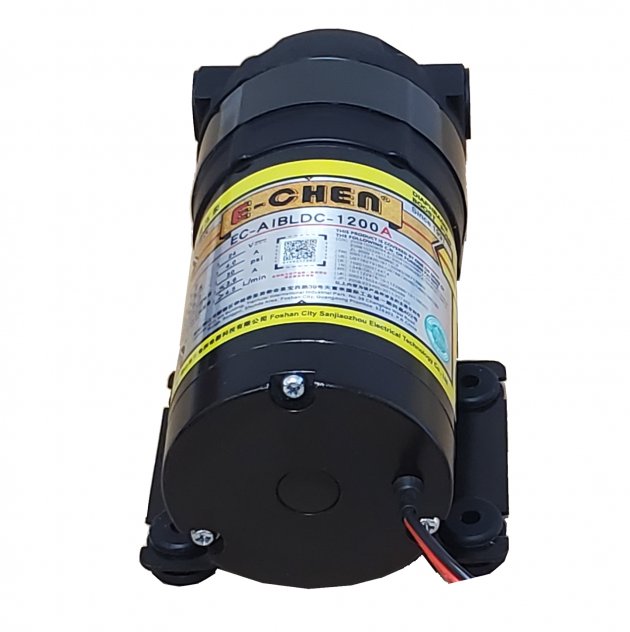

EC-AIBLDC-A Series

Product brief：

New BLDC/Brushless RO Booster Pump.
No carbon brush-No Sparks.
Long lifetime motor.
Steady RPM.
Self-Protection:Locked rotor protection,Over voltage protection and Over current protection .
Intergrated PCB driver.

Features
- Variable frequency motor
- Steady RPM
- Integrated PCB driver
- Over Voltage Protection
- Over Current Protection
- Locked Rotor Protection
Specifications
- Voltage：24VDC
- Port：3/8" NPT
- Inlet Pressure：30 psi
- Working Pressure：100 psi
- Flow at Working Pressure：≧ 3.8 LPM
- Current at Working Pressure： ≦ 3.1 A
- Max Current：≦ 3.7 A
- Max Pressure：140±10psi
- Weight：1.95kg
- Dimensions：183x103x96mm
Performance Curve Chart
Features
- Variable frequency motor
- Steady RPM
- Integrated PCB driver
- Over Voltage Protection
- Over Current Protection
- Locked Rotor Protection
Specifications
- Voltage：24VDC
- Port：3/8" NPT
- Inlet Pressure：30 psi
- Working Pressure：100 psi
- Flow at Working Pressure：≧ 4.1 LPM
- Current at Working Pressure： ≦ 3.3 A
- Max Current：≦ 3.8 A
- Max Pressure：145±10psi
- Weight：1.95kg
- Dimensions：183x103x96mm
Performance Curve Chart
Features
- Variable frequency motor
- Steady RPM
- Integrated PCB driver
- Over Voltage Protection
- Over Current Protection
- Locked Rotor Protection
Specifications
- Voltage：24VDC
- Port：3/8" NPT
- Inlet Pressure：30 psi
- Working Pressure：100 psi
- Flow at Working Pressure：≧ 4.5 LPM
- Current at Working Pressure： ≦ 3.5 A
- Max Current：≦ 4.0 A
- Max Pressure：145±10psi
- Weight：1.95kg
- Dimensions：183x103x96mm
Performance Curve Chart

EC-AIBLDC-800A
Features
- Variable frequency motor
- Steady RPM
- Integrated PCB driver
- Over Voltage Protection
- Over Current Protection
- Locked Rotor Protection
Specifications
- Voltage：24VDC
- Port：3/8" NPT
- Inlet Pressure：30 psi
- Working Pressure：100 psi
- Flow at Working Pressure：≧ 3.8 LPM
- Current at Working Pressure： ≦ 3.1 A
- Max Current：≦ 3.7 A
- Max Pressure：140±10psi
- Weight：1.95kg
- Dimensions：183x103x96mm
Performance Curve Chart
EC-AIBLDC-1000A
Features
- Variable frequency motor
- Steady RPM
- Integrated PCB driver
- Over Voltage Protection
- Over Current Protection
- Locked Rotor Protection
Specifications
- Voltage：24VDC
- Port：3/8" NPT
- Inlet Pressure：30 psi
- Working Pressure：100 psi
- Flow at Working Pressure：≧ 4.1 LPM
- Current at Working Pressure： ≦ 3.3 A
- Max Current：≦ 3.8 A
- Max Pressure：145±10psi
- Weight：1.95kg
- Dimensions：183x103x96mm
Performance Curve Chart
EC-AIBLDC-1200A
Features
- Variable frequency motor
- Steady RPM
- Integrated PCB driver
- Over Voltage Protection
- Over Current Protection
- Locked Rotor Protection
Specifications
- Voltage：24VDC
- Port：3/8" NPT
- Inlet Pressure：30 psi
- Working Pressure：100 psi
- Flow at Working Pressure：≧ 4.5 LPM
- Current at Working Pressure： ≦ 3.5 A
- Max Current：≦ 4.0 A
- Max Pressure：145±10psi
- Weight：1.95kg
- Dimensions：183x103x96mm

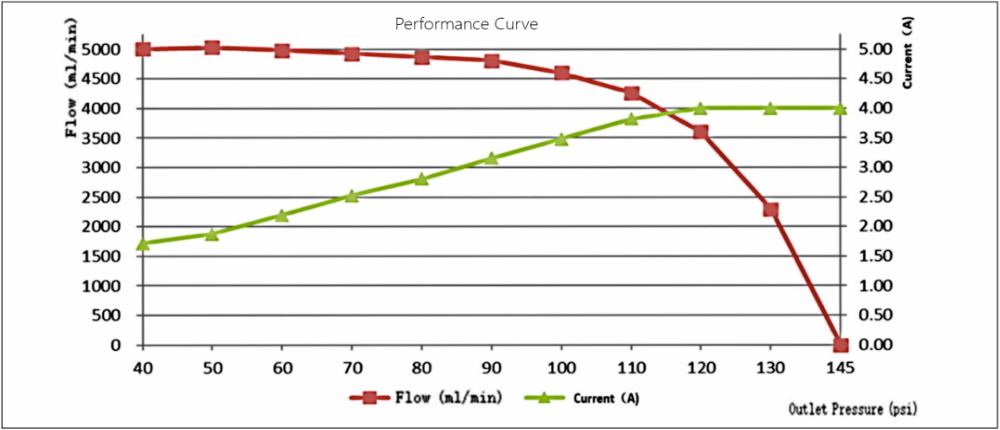

Performance Curve Chart
