EC-804 Series

1 / 2

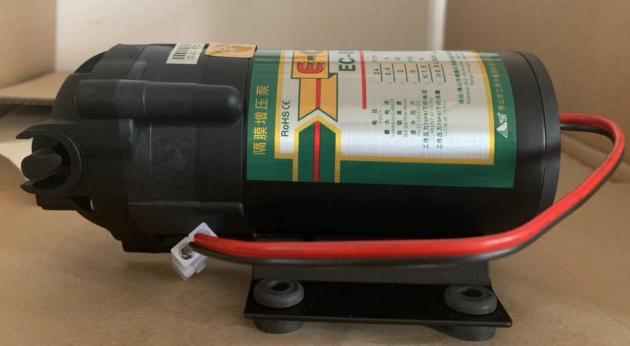

EC-804 Series

Compact Size and Self-Priming!

Product brief：

Compact version of EC-304 series. Powerful as same as EC-304 series but less cost. Avaialable for 50GPD, 75GPD and 100GPD.

Specifications
- Voltage：24VDC
- Port：⌀6.35mm
- Inlet Pressure：0 psi
- Working Pressure：70 psi
- Flow at Working Pressure：≧ 0.50 LPM
- Current at Working Pressure： ≦ 1.0 A
- Max Current：≦ 1.2 A
- Max Pressure：110±10psi
- Weight：1.50kg
- Dimensions：180x102x80mm
Performance Curve Chart
Specifications
- Voltage：24VDC
- Port：⌀6.35mm
- Inlet Pressure：0 psi
- Working Pressure：70 psi
- Flow at Working Pressure：≧ 0.75 LPM
- Current at Working Pressure： ≦ 1.2 A
- Max Current：≦ 1.5 A
- Max Pressure：110±10psi
- Weight：1.50kg
- Dimensions：180x102x80mm
Performance Curve Chart
Specifications
- Voltage：24VDC
- Port：⌀6.35mm
- Inlet Pressure：0 psi
- Working Pressure：70 psi
- Flow at Working Pressure：≧ 0.90 LPM
- Current at Working Pressure： ≦ 1.5 A
- Max Current：≦ 2.0 A
- Max Pressure：110±10psi
- Weight：1.50kg
- Dimensions：180x102x80mm
Performance Curve Chart

EC-804-50B
Specifications
- Voltage：24VDC
- Port：⌀6.35mm
- Inlet Pressure：0 psi
- Working Pressure：70 psi
- Flow at Working Pressure：≧ 0.50 LPM
- Current at Working Pressure： ≦ 1.0 A
- Max Current：≦ 1.2 A
- Max Pressure：110±10psi
- Weight：1.50kg
- Dimensions：180x102x80mm

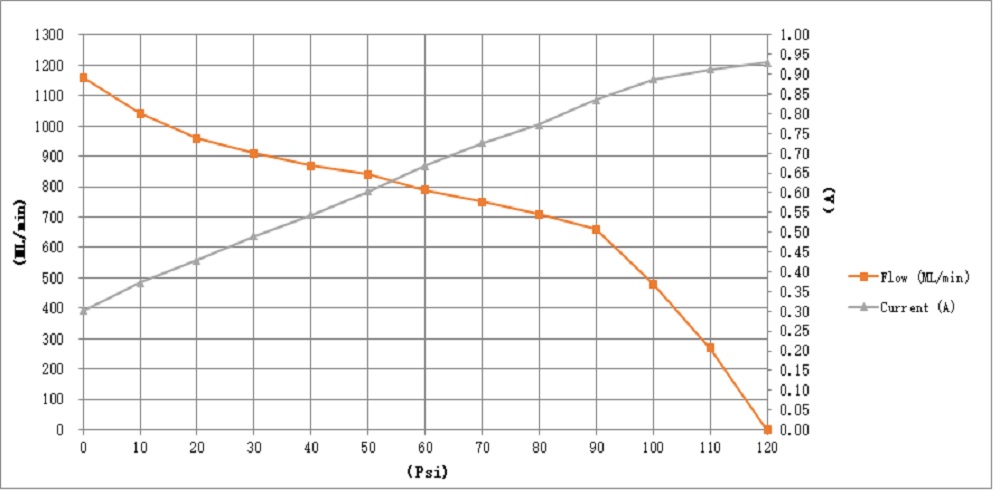

Performance Curve Chart
EC-804-75B
Specifications
- Voltage：24VDC
- Port：⌀6.35mm
- Inlet Pressure：0 psi
- Working Pressure：70 psi
- Flow at Working Pressure：≧ 0.75 LPM
- Current at Working Pressure： ≦ 1.2 A
- Max Current：≦ 1.5 A
- Max Pressure：110±10psi
- Weight：1.50kg
- Dimensions：180x102x80mm

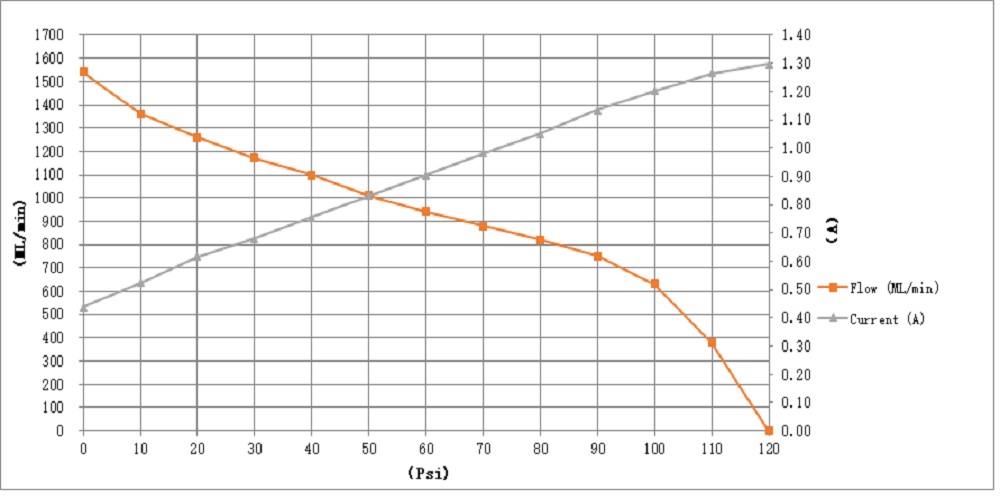

Performance Curve Chart
EC-804-100B
Specifications
- Voltage：24VDC
- Port：⌀6.35mm
- Inlet Pressure：0 psi
- Working Pressure：70 psi
- Flow at Working Pressure：≧ 0.90 LPM
- Current at Working Pressure： ≦ 1.5 A
- Max Current：≦ 2.0 A
- Max Pressure：110±10psi
- Weight：1.50kg
- Dimensions：180x102x80mm

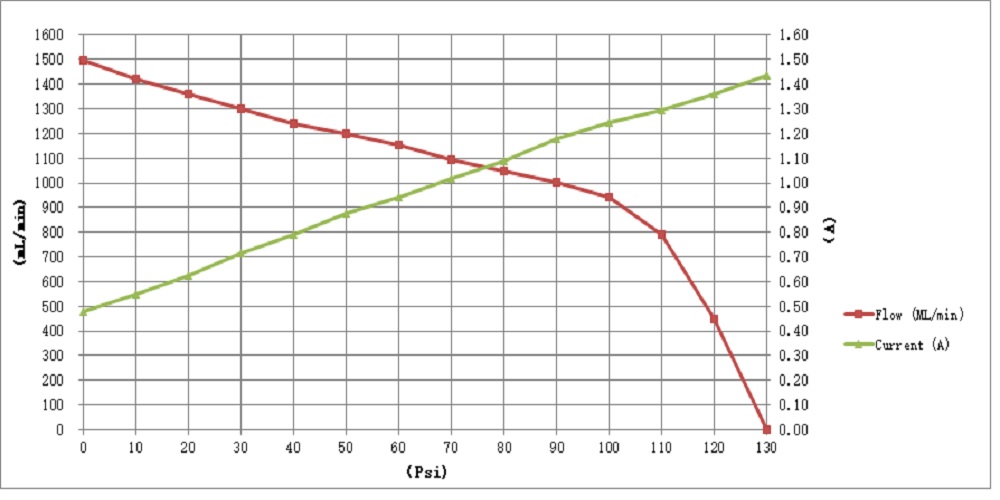

Performance Curve Chart

Features

3 Chambers Diaphragm Pump
Self-Priming
Compact Size
Patented Core Technology
Low Noise
No Decompression
No Water Leakage
High efficiency

Materials

Nylon Housing
EPDM Valves
Santoprene Diaphragm
304 Stainless Steel Fasteners

Applications

Pre-Filter Water Treatment
Reverse Osmosis
Medical Labwater
Misting Systems
Carbonation Systems
Alternative Energy/Solar
