Name: EC-RV L Series
Brand: WaterPAL International Co., Ltd
SKU: NO123

1 / 4

EC-RV L Series

Built-In Pressure Switch!

Product brief：

Delivery pump (also known as demand pump, dispensing pump and transfer pump) are designed to increase water pressure, transfer water and can be run continuously for hours at a time. Built-in pressure switch (standard 0.45Mpa off) to shut-off pump when pressure reaches setting. Available for 2, 3, 5, 7, 10, 12 LPM.

Specifications
- Voltage：24VDC (110VAC available)
- Port：3/8" NPT
- Inlet Pressure：0 psi
- Pressure Switch：0.45 Mpa (65 psi) Off (Available for different setting)
- Open Flow： 2.0 LPM
- Max Current：≦ 2.0 A
- Weight：2.30kg
- Dimensions：221x103x101mm
Performance Curve Chart
Specifications
- Voltage：24VDC (110VAC available)
- Port：3/8" NPT
- Inlet Pressure：0 psi
- Pressure Switch：0.45 Mpa (65 psi) Off (Available for different setting)
- Open Flow： 3.0 LPM
- Max Current：≦ 3.0 A
- Weight：2.30kg
- Dimensions：221x103x101mm
Performance Curve Chart

EC-RV-02L
Specifications
- Voltage：24VDC (110VAC available)
- Port：3/8" NPT
- Inlet Pressure：0 psi
- Pressure Switch：0.45 Mpa (65 psi) Off (Available for different setting)
- Open Flow： 2.0 LPM
- Max Current：≦ 2.0 A
- Weight：2.30kg
- Dimensions：221x103x101mm

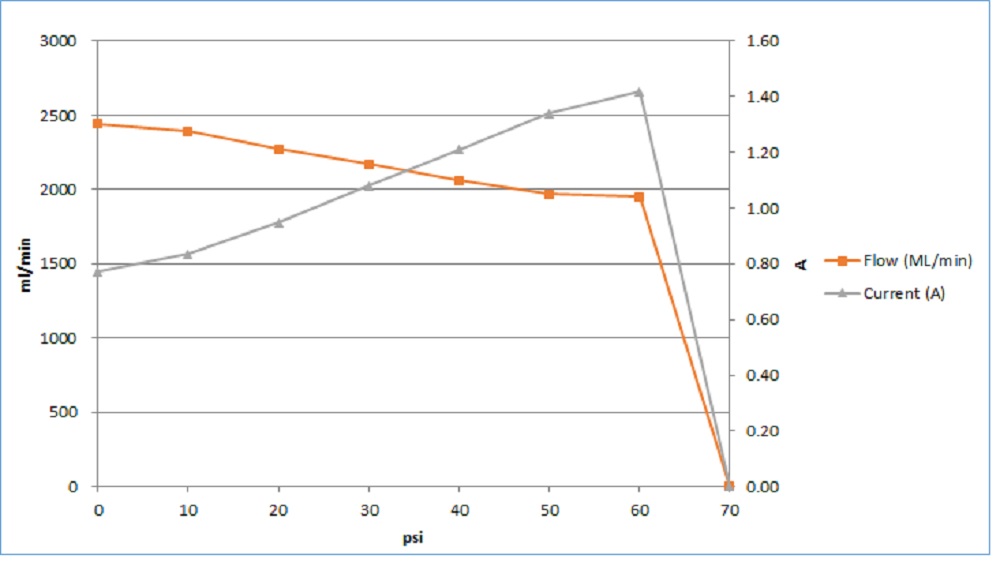

Performance Curve Chart
EC-RV-03L
Specifications
- Voltage：24VDC (110VAC available)
- Port：3/8" NPT
- Inlet Pressure：0 psi
- Pressure Switch：0.45 Mpa (65 psi) Off (Available for different setting)
- Open Flow： 3.0 LPM
- Max Current：≦ 3.0 A
- Weight：2.30kg
- Dimensions：221x103x101mm

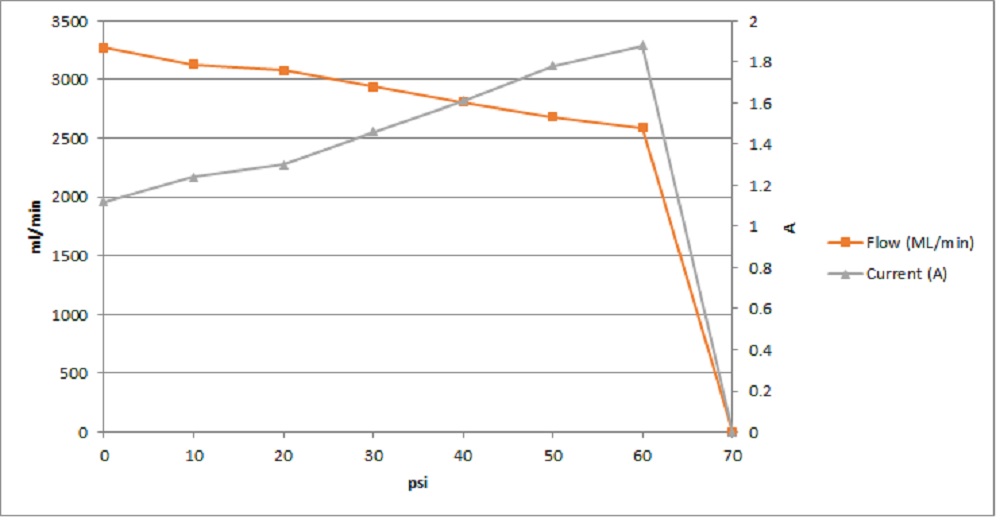

Performance Curve Chart
